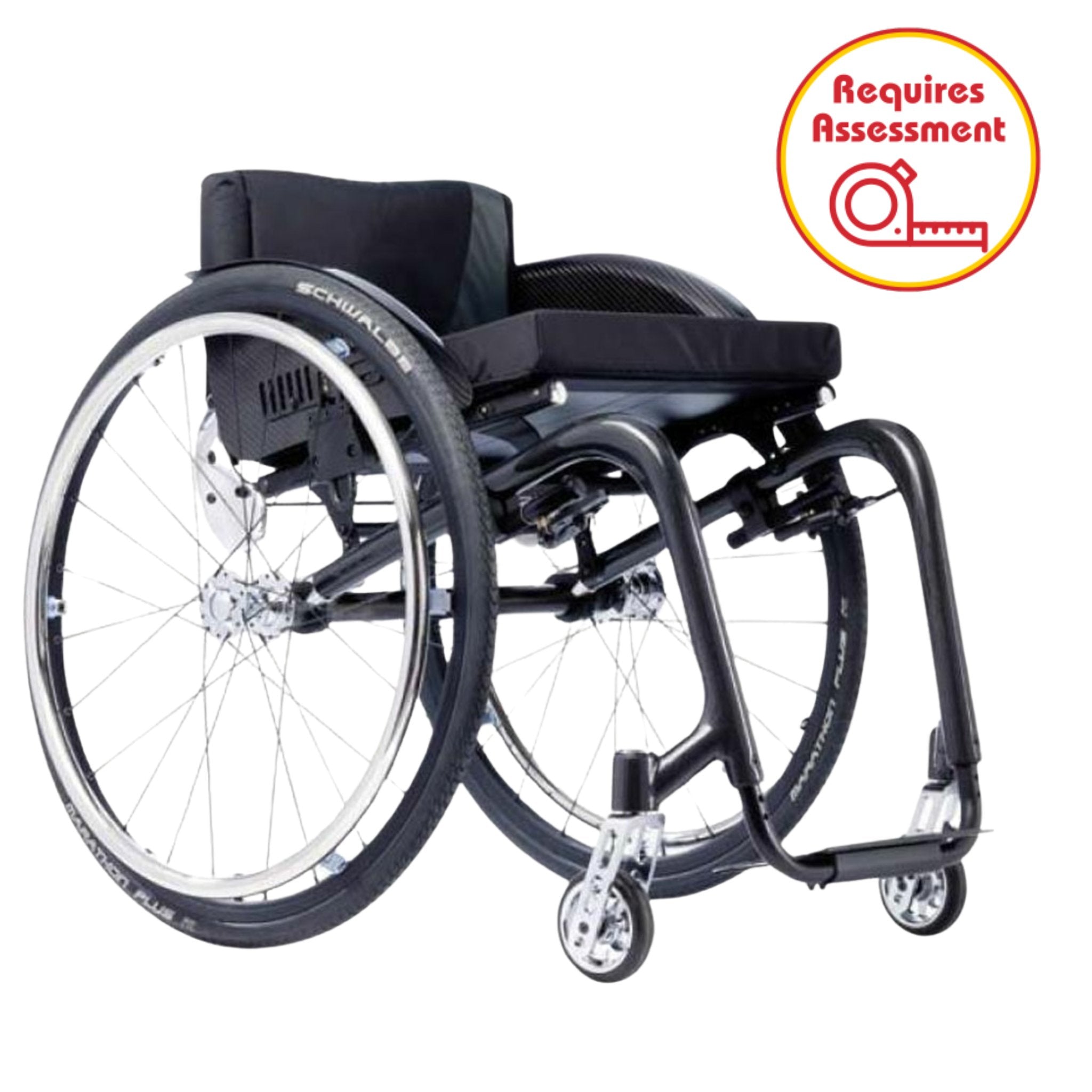

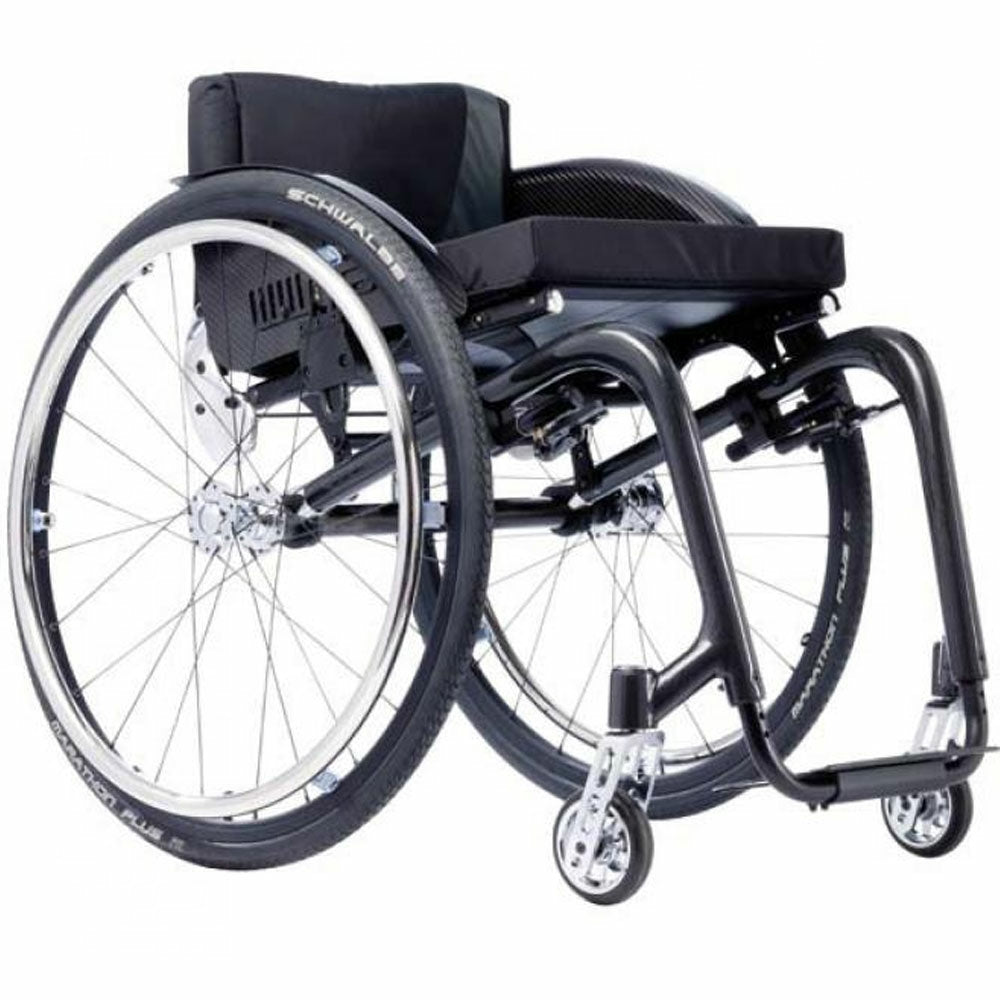

Kuschall K Series Wheelchair

ICONIC MODULAR DYNAMIC

The iconic modular K-Series is the perfect product for you. The unique versatile seat module can be effortlessly modified independently from the frame and is fully adjustable to be able to fit you perfectly. Whether you require a more stable position or are more advanced, the K-Series can be adapted to suit your lifestyle.

ESSENCE OF KÜSCHALL

This chair is the essence of Küschall and what the brand stands for, it includes all our know how in what all users want. A wheelchair that combines versatility, performance and design. If there's a product that represents everything we believe in, K-Series is it.

SEAT MODULE

If you are looking for something like this, you won’t find it. The seated module remains independent from the frame and allows you to change your seating set-up anytime, anywhere.

ERGONOMIC BACKREST BRACE

More grip and less lifting effort thanks to the new sleek hydroformed backrest brace. A cleverly designed wheelchair engineered to adapt with the changing elements in your daily life.

QUICK AND EASY FOLDING

The lockdown folding backrest is height and angle adjustable. Easy folding with the perfect open frame design ensures effortless car transfers. Stay independent and on the go!

CUSTOMIZATION OPTIONS

3 Simple steps and more than 100 design possibilities to make your Küschall wheelchair even more personal:

1. FRAME COLOUR

Select the frame among 5 possibilites - Pure White, Azure Blue, Carmine Red, Space Black, Anthracite Grey

2. DECAL DESIGN

Give a personal touch to your Küschall by adding a decal decoration on the frame. 2 options to choose among: Tag or Bold

3. DECAL COLOUR

Select the decal colour among 8 different possibilites: Red Tag, Black Tag, Red Bold, Black Bold, Dark Grey Bold, Light Grey Bold, Blue Bold, Gold Bold

Specifications

• Seat width: 320 – 500 mm in increments of 20 mm
• Seat depth: 350 – 525 mm in increments of 25 mm
• Knee-to-heel length: 290 – 480 mm in increments of 10 mm
• Backrest height: 270 – 480 mm in increments of 15 mm
• Backrest angle: 74° / 78° / 82° / 86° / 90° / 94°
• Seat height: front: 450 – 520 mm rear: 390 – 490 mm in increments of 10 mm
• Total width: SW + 170 mm
• Frame angle: 75° / 90° V-frame or tapered
• Total length: 75°: approx. 830 - 1055 mm 90°: approx. 760 - 985 mm
• Centre of gravity: 80 mm / 95 mm / 110 mm/ 125 mm / 140 mm
• safe slope: 0º / 3º / 6º
• Total weight unloaded: 7.8 kg
• Transport weight: 5.1 kg
• user weight: 130 kg

*All measurements and weights indicated are based on seat width 400 mm and seat depth 400 mm in the lightest and most compact configuration. Weight and measurements can change with the different configurations.

PRODUCT AVAILABLE INSTORE ONLY
