Full Description:

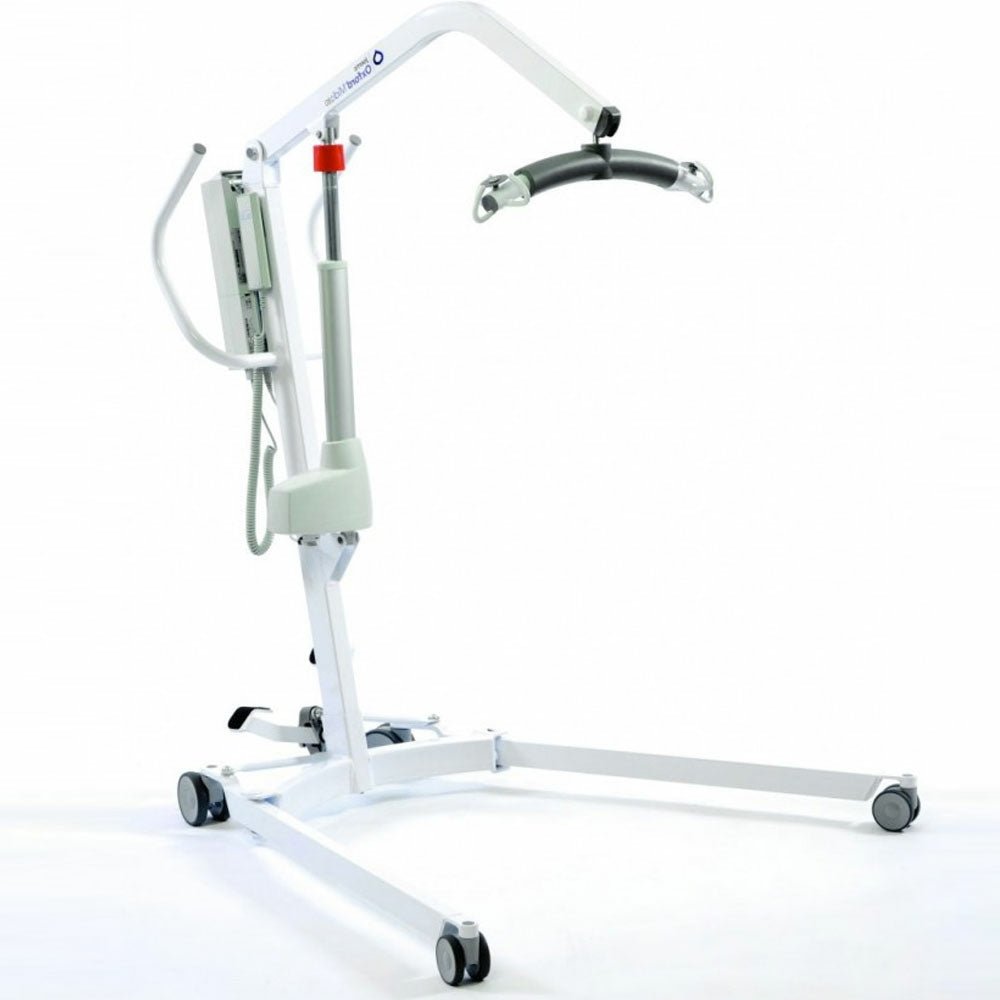

Also available as an electric version, the hydraulic Oxford Mini 180 Mobile Hoist is compact and highly durable, reducing the strain on carers during transfers.
It offers effective manoeuvrability in care environments and enables comfortable transfers. With an emergency lift and lower function, it can help anyone who is unable to stand safely whilst unaided.
PLEASE NOTE: Mobile hoists are governed under LOLER regulations and therefore require periodic servicing. Hoists are delivered boxed with assembly required – full set up instructions included. It is strongly recommended that a competent person commissions and assembles these items prior to use. NRS Healthcare also recommends professional advice is obtained to ensure correct product usage and compatibility.
Safe working load: 180kg (28st)
Max. overall length: 1225mm (48¼")
Min. overall length: 1225mm (48¼")
Max. overall height: 1840mm (72½")
Min. overall height: 1240mm (48¾")
Max. spreader bar height: 1660mm (65¼")
Min. spreader bar height: 525mm (20½")
Spreader bar height at max. reach: 1060mm (41¾")
Spreader bar reach at max. height: 420mm (16½")
Spreader bar reach at min. height: 440mm (17¼")
Max. reach: 655mm (25¾")
Turning radius: 1235mm (48½")
External width, legs open: 1170mm (46")
Internal width, legs open: 1070mm (42")
External width, legs closed: 600mm (23½")
Internal width, legs closed: 540mm (21¾")
Overall leg height: 100mm (4")
Ground clearance: 25mm (1")
Front twin castors: 75mm (3")
Rear braked castors: 100mm (4")
Product weight: 32kg (70½lb)
Product Specification:
| Brand | Millercare |
|---|---|
| Product Code: | OXF-MIDIE-UK |
| VAT Exempt: | Yes |
| Warranty (years): | 1 |
